DTI-QR

Description

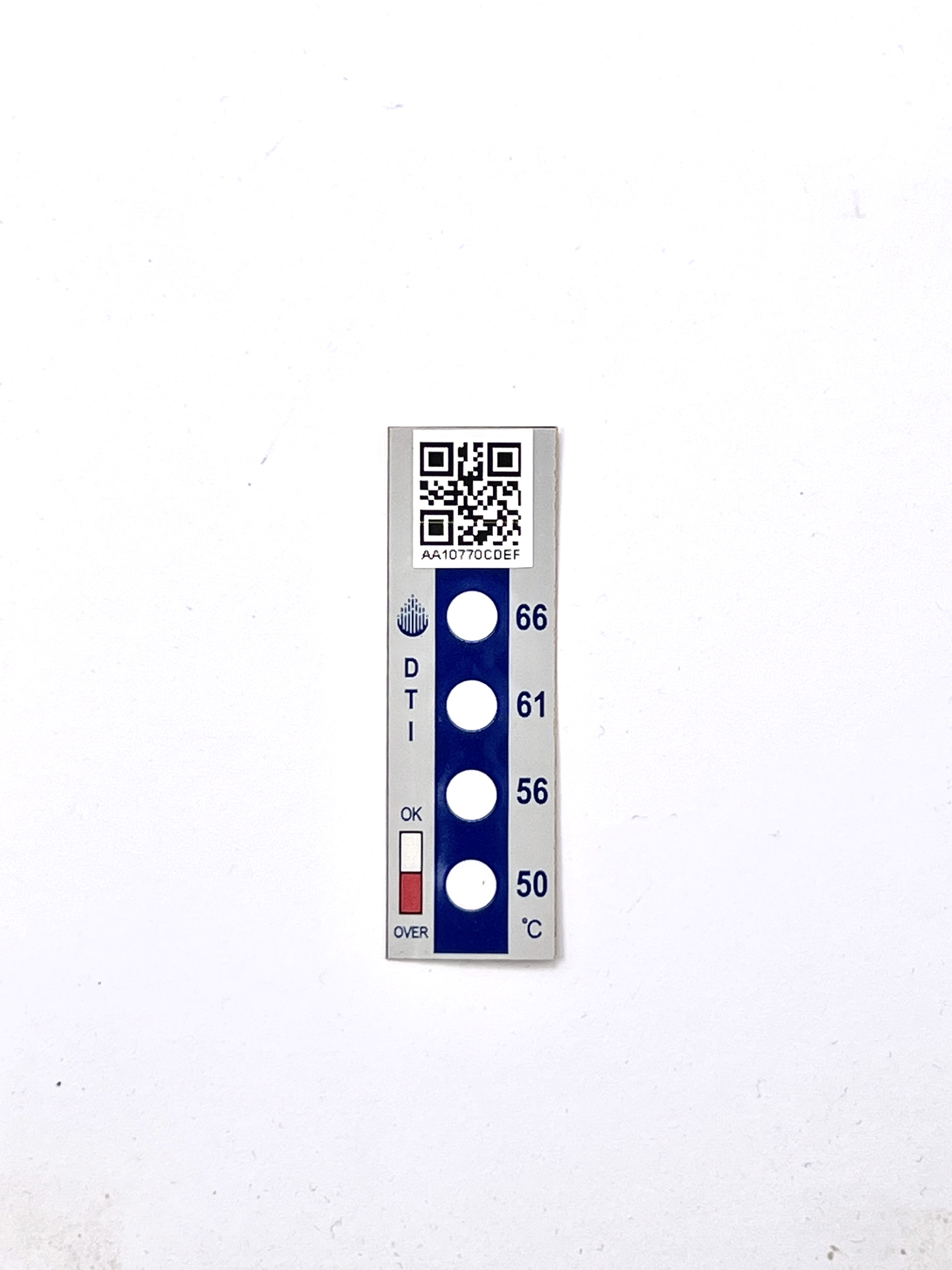

- Digital Temperature Indicator Label Model: DTI-QR - Multiple-level temperature display - Digital data logging via QR CODE

Specifications

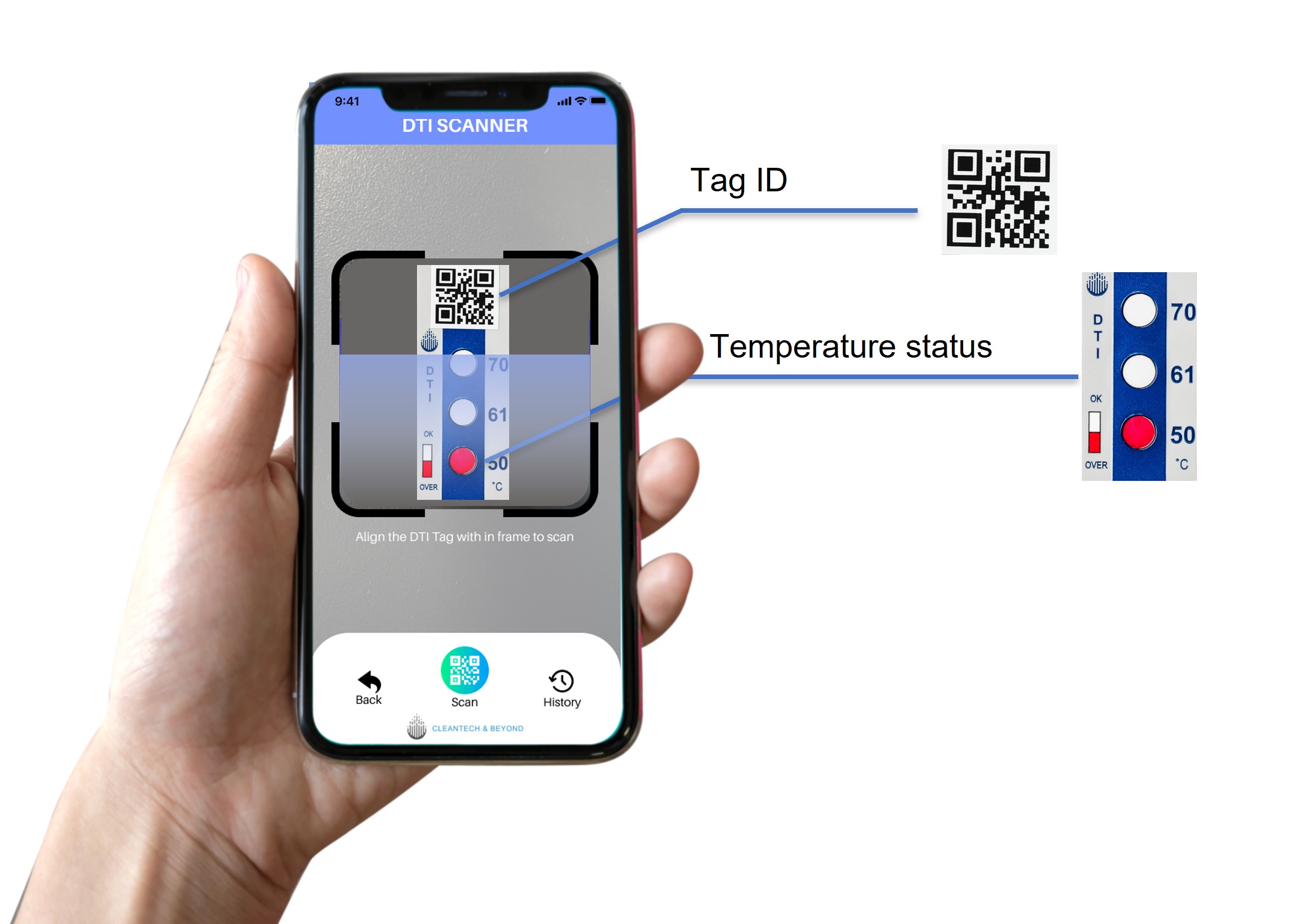

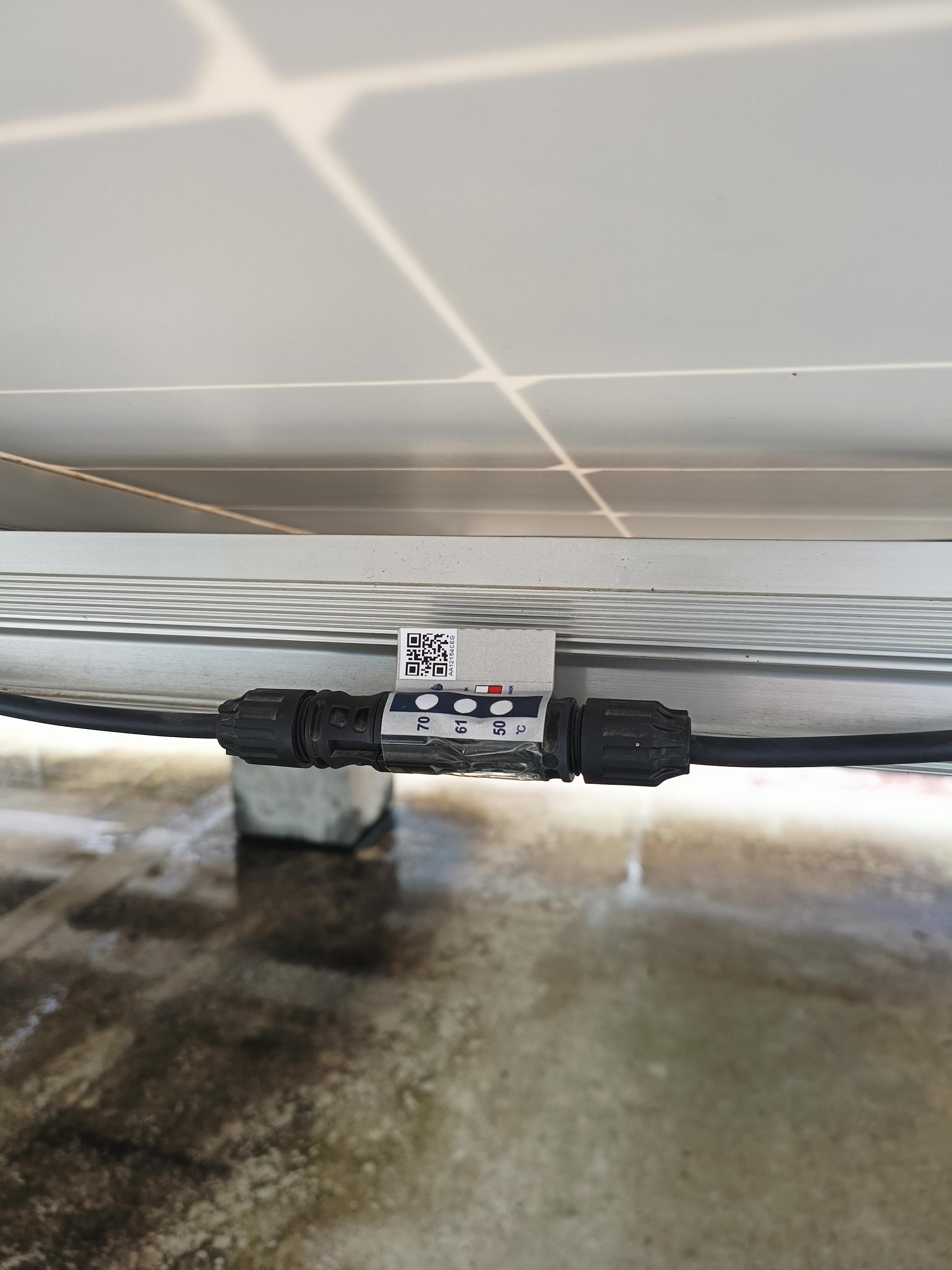

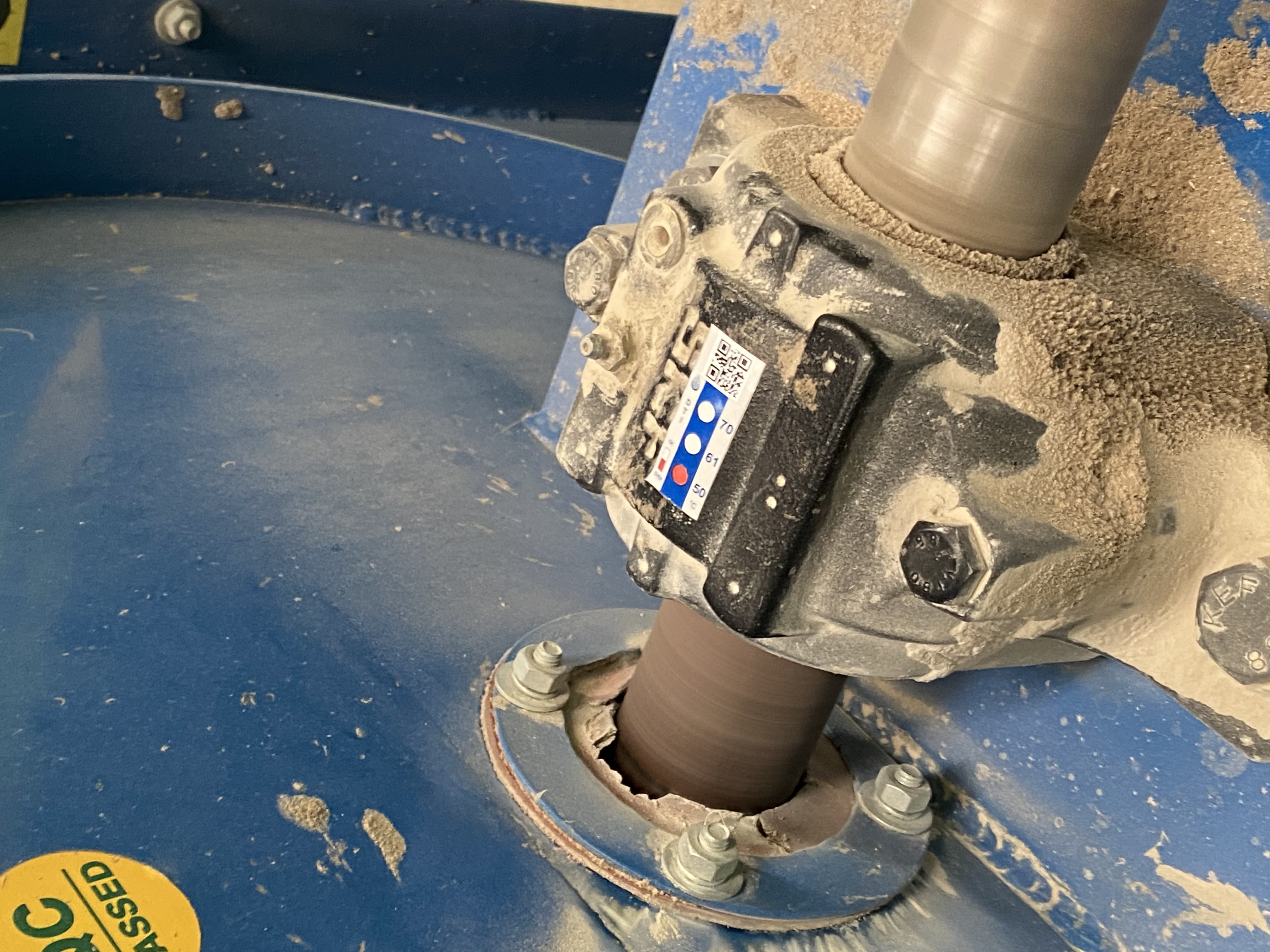

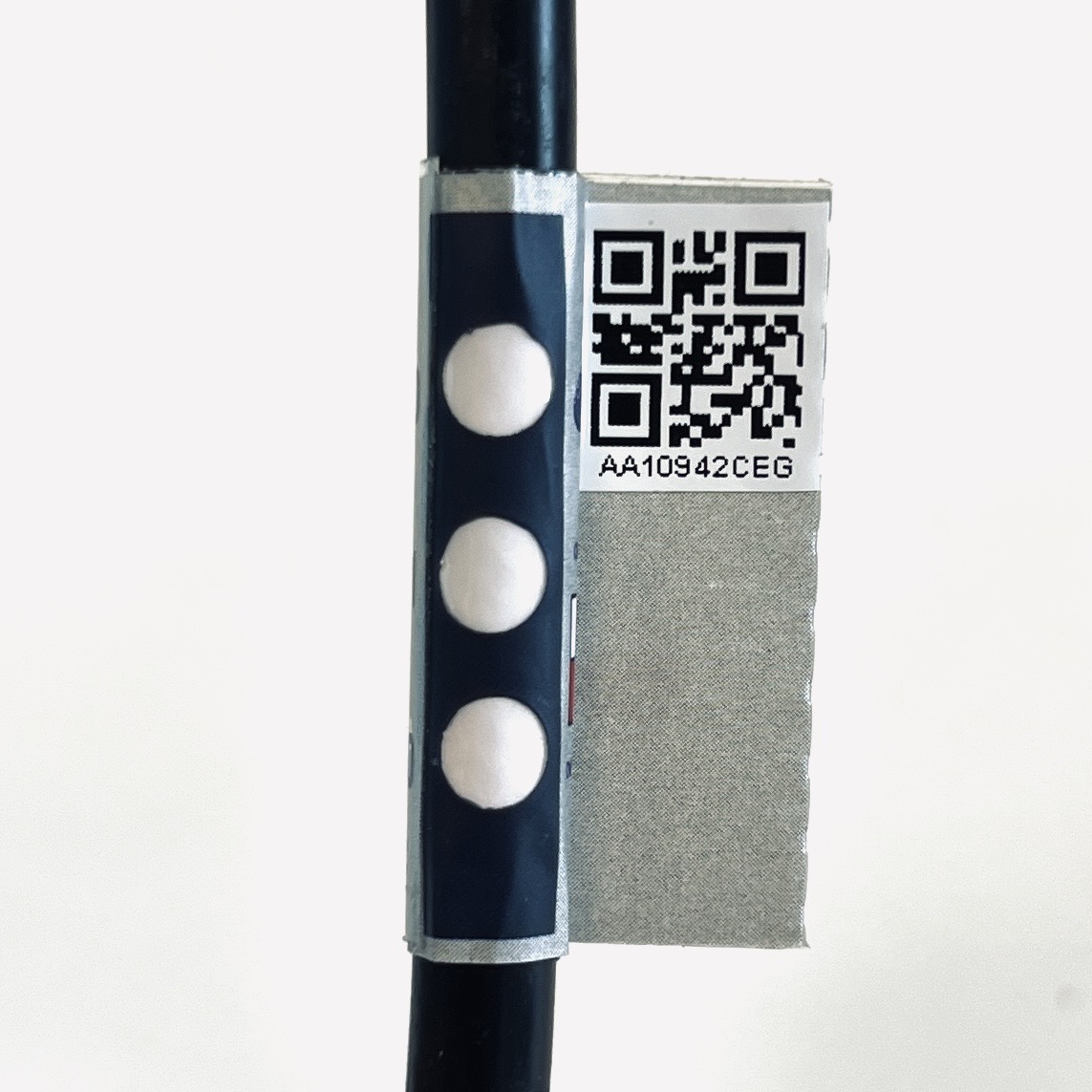

Accuracy: ± 1 °C Outputs: Visual and Digital (Thermotrace Application) Visual indication: White to red Response time: 3 minutes Shelf life*: 3 years Water resistance: Up to 72 hours Chemical resistance: Up to 12 hours Storage condition: <25 °C/ <70% RH (DTI 40,45 °C), <30 °C/ <70% RH (DTI 50 to 110 °C) Maximum operating temperature: 150 °C Package: 10 pcs/pack * From production date, when kept under recommended storage condition Temperature range: 3 temperature levels 40-50-61 °C 50-61-70 °C 56-66-76 °C​ 61-70-80 °C 70-76-80 °C 4 temperature levels 40-44-50-56 °C 40-50-61-70 °C 40-50-61-80 °C 50-56-61-66 °C 50-61-70-80 °C 56-61-66-70 °C 61-66-70-76 °C ​Size 17 x 45 mm (Standard, 3 temperature levels)​ 17 x 54 mm (Standard, 4 temperature levels) 17 x 31 mm (Wire, 3 temperature levels)​ 17 x 40 mm (Wire, 4 temperature levels) Applications: Preventive maintenance of electrical/electronic equipment Temperature monitoring of mechanical instruments Monitoring household items Solar panel temperature monitoring EV charger monitoring Quality control of heating process Key Benefits: Provide accurate thermal history data and location Irreversible change allows tracking of thermal history Low-cost suitable for item-level tracking Multiple temperature readings on one label

Introduction video
